Features

1. 4-Suction, 4-Feed Feeder Head, Adjustable Suction Nozzle Height And Angle, Smooth Paper Feeding.

2. Four Electric Front Gauges Are Equipped With Four Fiber Optic Detection Switches To Continuously Monitor The Accuracy Of Paper Placement.

3. The Side Guide Can Be Used For Both Pulling And Pushing, And Is Equipped With Photoelectric Detection Accuracy.

4. The Electric Digital Display For Raising And Lowering Pressure Allows For Easy Adjustment Of Pressure Via The Touchscreen.

5. The Main Wall Panels, Upper And Lower Platforms, And Base Are Made Of Pressure-Resistant Ductile Iron, Which Does Not Deform During Die Cutting And Ensures Stable Pressure.

6. The Four Feet Of The Moving Platform Can Be Adjusted Individually For Easy Leveling.

7. The Main Drive Adopts Worm Gear Transmission, And The Crankshaft, Rocker Arm, Connecting Rod And Bearing Are Connected.

8. The High-Precision Three-Dimensional Cam Indexing Intermittent Mechanism Makes The Tooth Bar Operation More Stable.

9. Each Oil Circuit Is Equipped With An Oil Speed And Flow Detection Switch, Which Will Automatically Alarm And Shut Down If The Oil Pressure Is Low Or There Is No Oil.

10. One-Time Waste Removal Function Removes Irrelevant Paper Scraps And Waste Edges Outside The Gripper Opening.

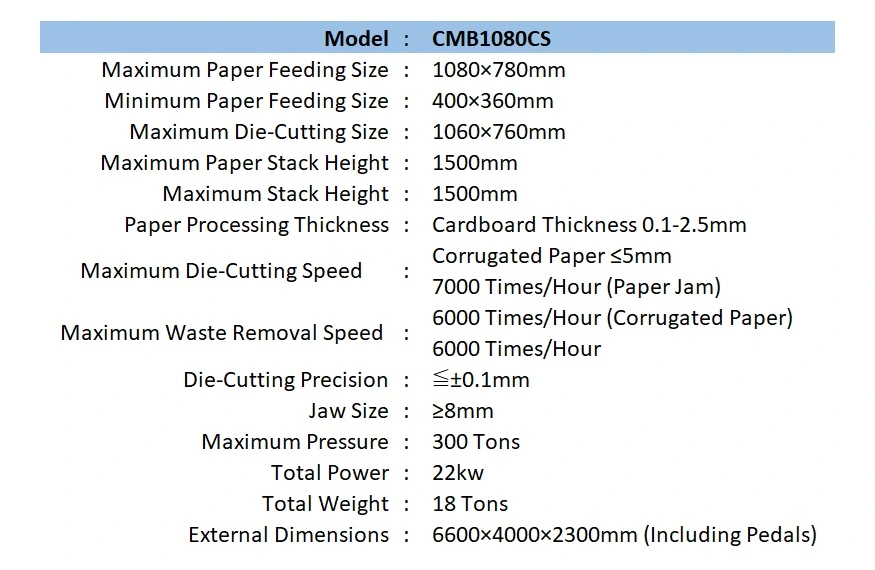

Technical Parameters
