Features

1. The Maximum Pressure Is Available In Three Models: 660 Tons, 900 Tons, And 1000+ Tons, To Meet The Requirements Of Various Deep Embossing Processes.

2. 12 Individually Adjustable Heating Temperature Zones For Hot Pressing Processes Such As Deep Embossing.

3. Delayed Pressure Holding And Shaping Function, The Paper Pressing Time Can Be Set, And The Embossing Effect Is Better.

4. Four Electric Front Gauges Are Equipped With Four Fiber Optic Detection Switches To Continuously Monitor The Accuracy Of Paper Placement.

5. The Side Guide Can Be Used For Both Pulling And Pushing, And Is Equipped With Photoelectric Detection Accuracy.

6. The Electric Digital Display For Raising And Lowering Pressure Allows For Easy Adjustment Of Pressure Via The Touchscreen.

7. The Main Drive Adopts Worm Gear Transmission, And The Crankshaft, Rocker Arm, Connecting Rod And Bearing Are Connected.

8. The Constant Temperature Oil Cooling System Can Ensure That The Temperature And Pressure Of Each Joint In The Main Drive Remain Constant.

9. Each Oil Circuit Is Equipped With An Oil Speed And Flow Detection Switch, Which Will Automatically Alarm And Shut Down If The Oil Pressure Is Low Or There Is No Oil.

10. One-Time Waste Removal Function Removes Irrelevant Paper Scraps And Waste Edges Outside The Gripper Opening.

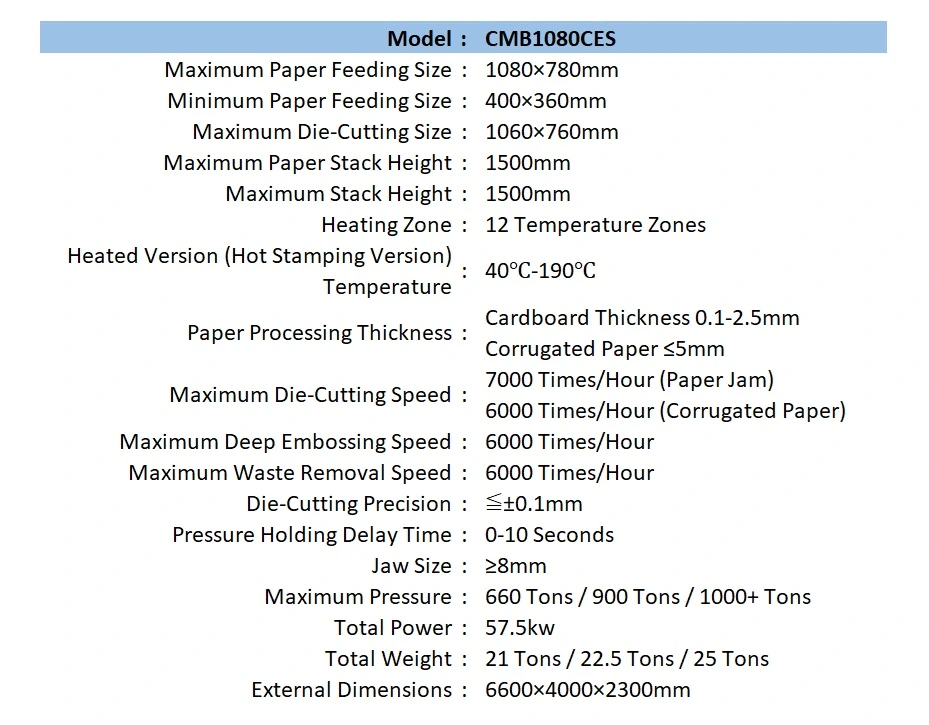

Technical Parameters
